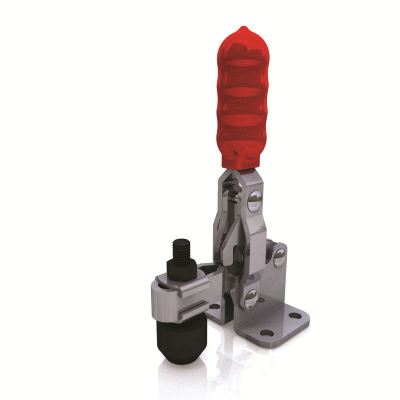

Vertical Toggle Clamp side mount 200kg

Product Code: TC12003B

Holding force: 200kg

Arm opens: 108°

Handle opens: 70°

Weight: 0.17kg

Spindle supplied: TC064010+TC06 Cap

Flanged washers supplied: FW-140

View Specification

£16.11 ex VAT

QTY

ADD TO BASKET

Availability: 2 In Stock

Overview

CAD Configurator

SKU: TC12003B
