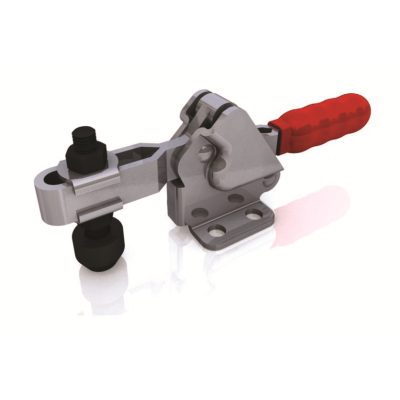

Horizontal Toggle Clamp Flat Base 145kg

Product Code: TC21502B

Holding force: 145kg

Arm opens: 94°

Handle opens: 76°

Weight: 0.23kg

Spindle supplied: TC064010BK + TC06 Cap

Flanged washers supplied: FW-140

View Specification

£13.92 ex VAT

QTY

Add To Basket

Availability: Backorder

Overview

CAD Configurator

SKU: TC21502B

Holding Force: 145kg

Reach: 61mm
