PP95 95mm OD with Drill Size Range 71mm - 78mm

Code: PP95

PP95 95mm OD with Drill Size Range 71mm - 78mm

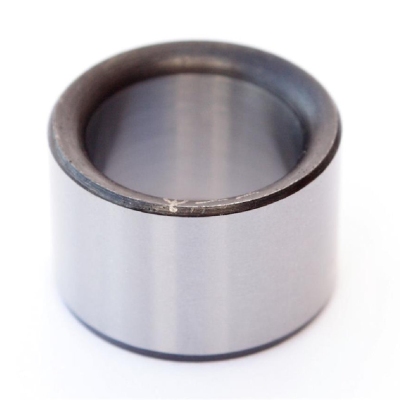

PP95 95mm Outside Diameter with Drill Size Range 71mm - 78mm.

Very large Plain Drill Bushes with a 95mm outside diameter and a bore range of 71mm to 78mm. Select the inside diameter (drill size) required and choose one of the standard-length options from the drop-down menu. Boneham drill bushes are manufactured in accordance with BS1098 Pt.2 1977 / ISO 4247 / DIN 179A. The Boneham brand of bushes play close attention to accuracy with strict adherence to concentricity and tolerances. Plain Drill Bushes are also known as headless bushes. As a UK manufacturer or drill bushes Boneham offer special bushes to customer specification and drawing.

Why choose the PP95 Bush for your application?

The PP / PH range are precision ground on the ID and OD to press-fit into a H6 reamed hole. The inside diameter is ground to F7 limits for drills. The tolerance and concentricity of Boneham bushes also make them ideal for location and alignment bushes in many jig and tool applications. The standard OD size of 95mm has a bore range of 71mm to 78mm in mainly 1mm increments. Specials made to order.

Key Features

  • Drill size range 71mm - 78mm
  • 95mm OD ground to suit H6 hole
  • Hardened and ground to 60-62 HRC

  • Drill size range 71mm - 78mm
  • F7 ID drill limits
  • 95mm OD ground to suit H6 hole
  • Hardened and ground to 60-62 HRC
  • Radius for easy drill / location pin entry
  • Lead chamfer for easy drill bush location

MaterialSteel
Finish / ColourHardened / Ground Finish with Blackened Ends
Tailoring OptionsBore Size, Reamer Limits, Length or to Customer Drawing
Manufacturing StandardBS 1098 PT. 2 1977 / ISO 4247 / DIN 179A
Metric or ImperialMetric (Some Imperial Bores Available)
Standard Size Range71mm - 78mm
Parent Item CodePP95
IncludedHeadless Drill Bush
Please select an item below to view/download Download All
  • Document

    Plain Metric Drill Bushes PP DIN 179A ISO 4247 View Download
