PP105 105mm OD with Drill Size Range 80mm - 85mm
Code: PP105
PP105 105mm Outside Diameter with Drill Size Range 80mm - 85mm.

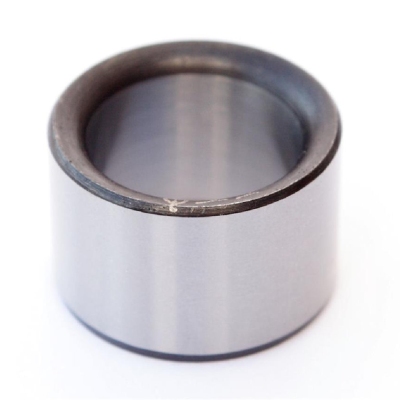

Plain Drill Bushes with a 105mm outside diameter and a bore range of 80mm to 85mm. Select the inside diameter (drill size) required and choose one of the standard-length options from the drop-down menu. Boneham drill bushes are manufactured in accordance with BS1098 Pt.2 1977 / ISO 4247 / DIN 179A. The Boneham brand of bushes play close attention to accuracy with strict adherence to concentricity and tolerances. Plain Drill Bushes are also known as headless bushes.
Why choose the PP105 Bush for your application?
The PP / PH range are precision ground on the ID and OD to press-fit into a H6 reamed hole. The inside diameter is ground to F7 limits for drills. The tolerance and concentricity of Boneham bushes also make them ideal for location and alignment bushes in many jig and tool applications. The standard OD size of 105mm has a bore range of 80mm to 85mm in mainly 1mm increments. Larger bushes tend to have fewer standard options. Imperial bores sizes are available sometimes in stock or to order.
Key Features
- Drill size range 80mm - 85mm
- F7 bore tolerance
- 105mm ground to suit H6 hole
- Hardened and ground to 60-62 HRC
- Drill size range 80mm - 85mm
- F7 bore tolerance
- 105mm ground to suit H6 hole
- Hardened and ground to 60-62 HRC
- Radius for easy drill / location pin entry
- Lead chamfer for easy drill bush location
| Material | Steel |
| Finish / Colour | Hardened / Ground Finish with Blackened Ends |
| Tailoring Options | Bore Size, Reamer Limits, Length or to Customer Drawing |
| Manufacturing Standard | BS 1098 PT. 2 1977 / ISO 4247 / DIN 179A |
| Metric or Imperial | Metric (Some Imperial Bores Available) |
| Standard Size Range | 80mm - 85mm |
| Parent Item Code | PP105 |
| Included | Headless Drill Bush |
