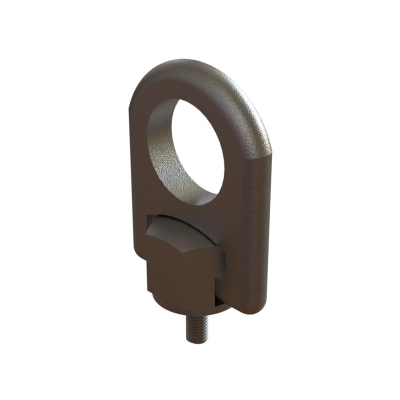

Metric Forged Swivel Hoist Ring

Item No. FHRM

Metric Forged Swivel Hoist Rings Forged steel swivel hoist rings with metric threads from M8 to M42. Forged hoist rings offer increased impact resistance and greater load capacity. These forged hoist rings feature a 360-degree swivel action and 180-degree bail pivot. Safety features include 200%

Read full description

Thread Diameter x (Pitch) x Length

Rated Load KG

200% Proof-Load Tested
Forged Alloy Steel
Serial Number for Traceability
M8 to M42

Description
Attachments

Description

Metric Forged Swivel Hoist Rings

Forged steel swivel hoist rings with metric threads from M8 to M42. Forged hoist rings offer increased impact resistance and greater load capacity. These forged hoist rings feature a 360-degree swivel action and 180-degree bail pivot. Safety features include 200% proof-load tested and feature a unique serial number for traceability and a safety factor of 5:1. Manufactured from alloy steel as standard. Also known as swivel lifting eyes or swivel lifting eye bolts, imperial hoist rings have a loading range from 400KG to 12,500KG.

Forged Steel Safety Hoist Ring in Summary

200% Proof-Load Tested with Serial Number for Traceability
Swivels 360° - Pivots 180°
Material: Forged Alloy Steel
Safety Factor: 5:1
Magnetic Particle Inspected
Liquid penetrant tested
Certified Heat Treatment
Rated at 100% from 0°-90°
Fatigue Tested to 20,000 Cycles at 1-1/2x the Rated Load
Meets or Exceeds the Requirements of ASME B30.26
Thread: Longer Thread Projection and Fine Threads Available
Conforms to CE

What are forged metric hoist rings used for?

A forged steel metric swivel hoist ring, or otherwise known as a swivel eye bolt, is a piece of lifting hardware that screws into an object as a lift point for rigging to connect for hoisting and traveling. Similar to the traditional static eye bolt, but for a 360-degree swivel and 180-degree pivot. This swivel and pivot action can accommodate angular lifts, unlike the fixed bolt which is heavily compromised.

Hoist Ring Identification

Swivel hoist rings are marked according to ASME B30.26. Subsequently, they are stamped or forged with the manufacturers trademark, load rating and torque value. Each hoist ring is delivered with a Certificate of Conformance referencing the serial number which is also marked on the ring. The serial number can also be used for documenting statuary LER checks.

Lifting Device Safety Information

Prior to the using any hoist rings, please read the safety information and precautions sheet on the download tab of this page. The manufacturer ensures that all materials used on all hoist ring products meet or exceed the safety requirements for lifting. The safe working loads lifted for each hoist ring are based upon a new or “as new” condition product. The safe working load is considered to be the greatest load that should be applied to an item at any time.
For further items in the lifting eye bolt and hoist ring range, please see below or navigate the main menu under hoist rings. Stainless steel, Metric and imperial threads also available.
