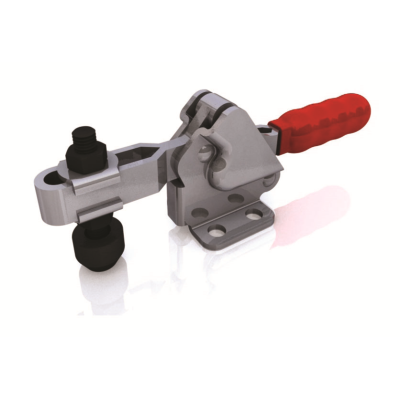

Horizontal Toggle Clamp Flat Base 350kg

Product Code: TC23502B

Holding force: 350kg

Arm opens: 94°

Handle opens: 76°

Weight: 0.5kg

Spindle supplied: TC107515

Flanged washers supplied: FW-380

View Specification

£24.52 ex VAT

QTY

Add To Basket

Availability: Backorder

Overview

CAD Configurator

SKU: TC23502B

Holding Force: 350kg

Reach: 180mm
