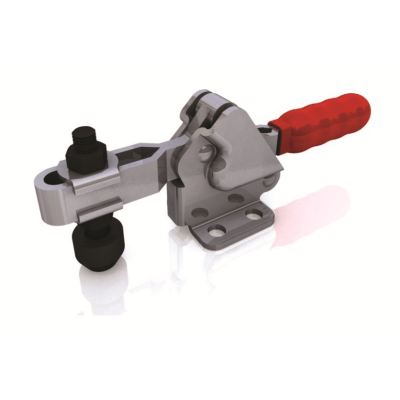

Horizontal Toggle Clamp Flat Base 235kg

Product Code: TC22502B

Holding force: 235kg

Arm opens: 94°

Handle opens: 76°

Weight: 0.43kg

Spindle supplied: TC085012

Flanged washers supplied: FW-516

View Specification

£18.45 ex VAT

QTY

Add To Basket

Availability: Backorder

Overview

CAD Configurator

SKU: TC22502B

Holding Force: 235kg

Reach: 79mm
