PP62 62mm OD with Drill Size Range 42.50mm - 48.00mm
Item No.
PP62
PP62 62mm Outside Diameter with Drill Size Range 42.50mm - 48.00mm Plain Drill Bushes with a 5mm outside diameter and a bore range of 42.50mm to 48.00mm. Select the Inside diameter (drill size) required and choose one of the standard-length options from the drop-down menu. Boneham drill bushes are
Read full description
- Drill Size Range 42.50mm - 48.00mm
-
- 62mm OD to suit H6 hole
-
- Hardened and Ground to 60-62 HRC
-
- Manufactured to DIN 179 and ISO 4247
Description

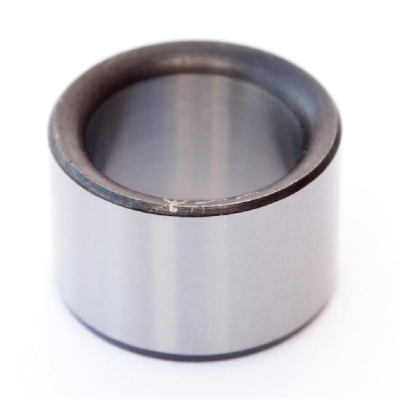

PP62 62mm Outside Diameter with Drill Size Range 42.50mm - 48.00mm
Plain Drill Bushes with a 5mm outside diameter and a bore range of 42.50mm to 48.00mm. Select the Inside diameter (drill size) required and choose one of the standard-length options from the drop-down menu. Boneham drill bushes are manufactured in accordance with BS1098 Pt.2 1977 / ISO 4247 / DIN 179A. The Boneham brand of bushes play close attention to accuracy with strict adherence to concentricity and tolerances. Plain Drill Bushes are also known as headless bushes. As a UK manufacturer or drill bushes, Boneham offer special bushes to customer specification and drawing.Why choose the PP62 Bush for your application?
The PP / PH range are precision ground on the ID and OD to press-fit into a H6 reamed hole. The inside diameter is ground to F7 limits for drills. The tolerance and concentricity of Boneham bushes also make them ideal for location and alignment bushes in many jig and tool applications. The standard OD size of 10mm has a bore range of 42.50mm to 48.00mm in 1mm and 0.5mm increments.
