PP4 4mm OD with Drill Size Range 1.05mm - 1.80mm
Item No.
PP4
PP4 4mm Outside Diameter with Drill Size Range 1.05mm - 1.80mm Plain Drill Bushes with a 4mm outside diameter and a bore range of 1.05mm to 1.80mm. Select the Inside diameter (drill size) required and choose one of the standard-length options from the drop-down menu. Boneham drill bushes are
Read full description
- Drill Size Range 1.05mm - 1.80mm
-
- 4mm OD Ground to suit H6
-
- Hardened and ground 60-62 HRC
-
- Manufactured to DIN 179A and ISO 4247
Description
PP4 4mm Outside Diameter with Drill Size Range 1.05mm - 1.80mm

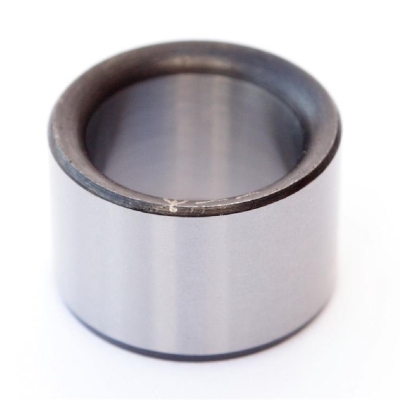

Plain Drill Bushes with a 4mm outside diameter and a bore range of 1.05mm to 1.80mm. Select the Inside diameter (drill size) required and choose one of the standard-length options from the drop-down menu. Boneham drill bushes are manufactured in accordance with BS1098 Pt.2 1977 / ISO 4247 / DIN 179A. The Boneham brand of bushes play close attention to accuracy with strict adherence to concentricity and tolerances. Plain Drill Bushes are also known as headless bushes.Why choose the PP4 Bush for your application?
The PP / PH range are precision ground on the ID and OD to press-fit into a H6 reamed hole. The inside diameter is ground to F7 limits for drills. The tolerance and concentricity of Boneham bushes also make them ideal for location and alignment bushes in many jig and tool applications. The standard OD size of 10mm has a bore range of 1.05mm to 1.80mm in mainly 0.1mm increments, but also some 0.05 sizes. Imperial bores sizes are available, sometimes in stock or to order.
