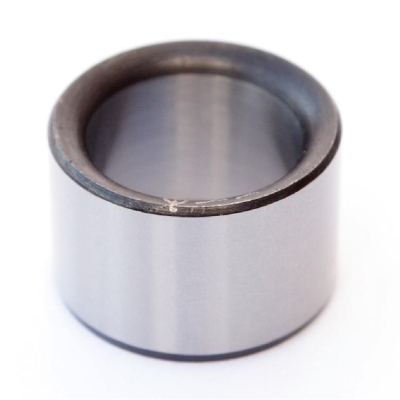

PP30 30mm OD with Drill Size Range 18.25mm - 22.00mm
Item No.
PP30
PP30 30mm Outside Diameter with Drill Size Range 18.25mm - 22.00mm Plain Drill Bushes with a 30mm outside diameter and a bore range of 18.25mm to 22.00mm. Select the Inside diameter (drill size) required and choose one of the standard-length options from the drop-down menu. Boneham drill bushes are
Read full description
- Drill Size Range 18.25mm - 22.00mm
-
- 30mm OD ground to suit H6
-
- Hardened and ground to 60-62 HRC
-
- Manufactured to ISO 4247 and DIN 179A
Description
PP30 30mm Outside Diameter with Drill Size Range 18.25mm - 22.00mm
Plain Drill Bushes with a 30mm outside diameter and a bore range of 18.25mm to 22.00mm. Select the Inside diameter (drill size) required and choose one of the standard-length options from the drop-down menu. Boneham drill bushes are manufactured in accordance with BS1098 Pt.2 1977 / ISO 4247 / DIN 179A. The Boneham brand of bushes play close attention to accuracy with strict adherence to concentricity and tolerances. Plain Drill Bushes are also known as headless bushes.Why choose the PP30 Bush for your application?
The PP / PH range are precision ground on the ID and OD to press-fit into a H6 reamed hole. The inside diameter is ground to F7 limits for drills. The tolerance and concentricity of Boneham bushes also make them ideal for location and alignment bushes in many jig and tool applications. The standard OD size of 30mm has a bore range of 18.25mm to 22mm.
