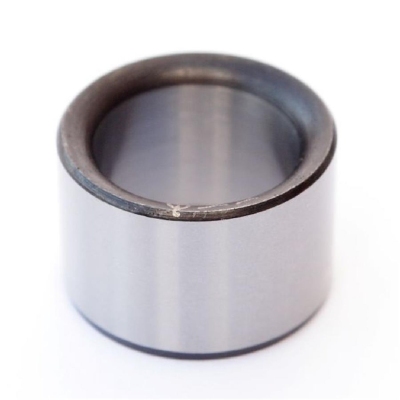

PL7 2.750 Bore Bush 1 - 2.5 Lengths
Code: PL7
PL7 Plain 2.750" Bore Bush 1" - 2.5" Lengths
Headless Plain Imperial Liner bush with a 2+3/4" bore. Available lengths from 1" to 2.5". PL7 imperial bushes can be used as a stand alone plain jig bush or as a liner bush for renewable bushes or locators.
Key Features
- 2.750" (2+¾") bore
- 1" - 2.500" lengths
- Used as a drill bush liner bush or location bush
- 2.750" (2+¾") bore
- 1" - 2.500" lengths
- Used as a drill bush, liner bush or location bush
- F7 dill limits
- Radius for easy drill / location pin entry
- Lead chamfer for easy drill bush location
| Material | Steel |
| Finish / Colour | Hardened / Ground Finish with Blackened Ends |
| Tailoring Options | Bore Size, Reamer Limits, Length or to Customer Drawing |
| Manufacturing Standard | BS 1098 PT. 1 1967 |
| Metric or Imperial | Imperial |
| Standard Size Range | 1" - 2.500" lengths |
| Parent Item Code | PL7 |
| Included | Headed Drill Bush |
