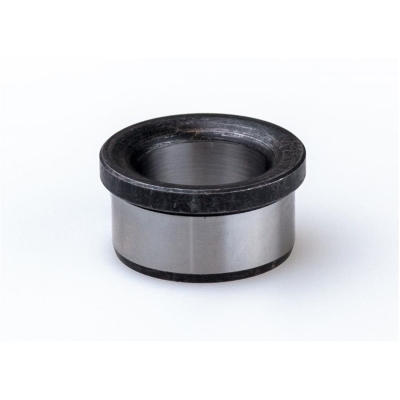

S Type Imperial Jig Bush BS1098 Pt.1 1967
Hover to zoom | Click to enlarge
SB11 Drill Size Range 1.3780 - 1.5625
Item No.
SB-11
Bore Size (ID)
Select
1+1/2
1+31/64
1+7/16
1+9/16
35.5mm
35mm
36mm
37.5mm
37mm
38.5mm
38mm
39.5mm
39mm
Length
Select
1+
1+1/2
1+1/4
1+3/4
1+3/8
2+
2+1/2
