Drill ID Size Range 64mm - 70mm PH85 85mm OD
Code: PH85
PH85 85mm OD with Drill Size Range 64mm - 70mm

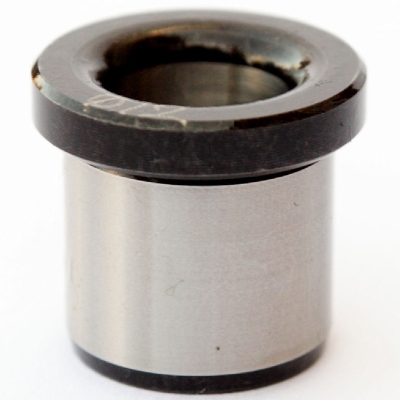

Headed Drill Bushes with a 85mm outside diameter and a bore range of 64mm to 70mm. Select the Inside diameter (drill size) required and choose one of the standard-length options from the drop-down menu.
Boneham drill bushes are manufactured in accordance with BS1098 Pt.2 1977 / ISO 4247 / DIN 172A. The Boneham brand of bushes play close attention to accuracy with close adherence to concentricity and tolerances.
Key Features
- Drill size range 64mm - 70mm ID
- 85mm outside diameter to suit H6
- Hardened and ground 58-64 HRC
- Drill size range 64mm - 70mm ID
- 85mm outside diameter to suit H6
- Hardened and ground 58-64 HRC
| Material | Steel |
| Finish / Colour | Hardened / Natural Finish |
| Tailoring Options | Bore, Length, Finish |
| Manufacturing Standard | Boneham Standard |
| Metric or Imperial | Metric |
| Standard Size Range | 64mm - 70mm ID |
| Parent Item Code | PH85 |
| Included | Headed Drill Bush |
