Drill ID Size Range 30.25mm - 35.00mm PH48 48mm OD
Code: PH48

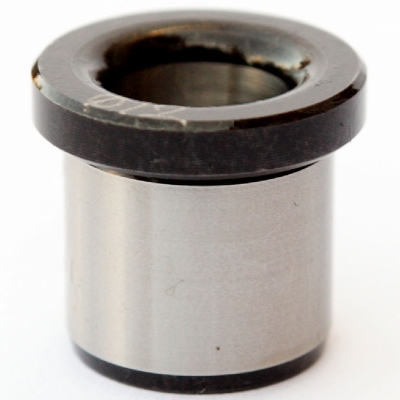

PH48 48mm OD with Drill Size Range 30.25mm - 35.00mm
Headed Drill Bushes with a 48mm outside diameter and a bore range of 30.25mm to 35.00mm. Select the Inside diameter (drill size) required and choose one of the standard-length options from the drop-down menu.
Boneham drill bushes are manufactured in accordance with BS1098 Pt.2 1977 / ISO 4247 / DIN 172A. The Boneham brand of bushes play close attention to accuracy with close adherence to concentricity and tolerances.
Key Features
- Drill sizes 30.25mm - 35.00mm
- 48mm outside diameter to suit H6
- Hardened and ground to H6
- Drill sizes 30.25mm - 35.00mm
- 48mm outside diameter to suit H6
- Hardened and ground to H6
| Material | Steel |
| Finish / Colour | Hardened / Natural Finish |
| Tailoring Options | Bore, Length, Finish |
| Manufacturing Standard | Boneham Standard |
| Metric or Imperial | Metric |
| Standard Size Range | 30.25mm - 35.00mm |
| Parent Item Code | PH48 |
| Included | Headed Drill Bush |
