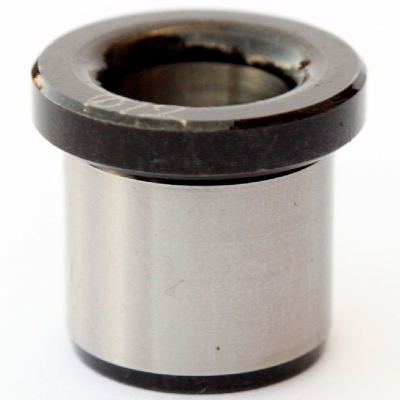

Drill ID Size Range 18.25mm - 22.00mm PH30 30mm OD
Code: PH30
PH30 30mm OD with Drill Size Range 18.25mm - 22.00mm
Headed Drill Bushes with a 30mm outside diameter and a bore range of 18.25mm to 22.00mm. Select the inside diameter (drill size) required and choose one of the standard-length options from the drop-down menu.
Boneham drill bushes are manufactured in accordance with BS1098 Pt.2 1977 / ISO 4247 / DIN 172A. The Boneham brand of bushes play close attention to accuracy with close adherence to concentricity and tolerances.
Key Features
- Drill sizes 18.25mm to 22.00mm ID
- 30mm outside diameter
- Hardened and Ground 58-62 HRC
- Drill sizes 18.25mm to 22.00mm ID
- 30mm outside diameter
- Hardened and Ground 58-62 HRC
| Material | Steel |
| Finish / Colour | Hardened / Natural Finish |
| Tailoring Options | Bore, Length, Finish |
| Manufacturing Standard | Boneham Standard |
| Metric or Imperial | Metric |
| Standard Size Range | 8.25mm to 22.00mm ID |
| Parent Item Code | PH30 |
| Included | Headed Drill Bush |
