RD10 Drill Size Range 3.70mm - 6.00mm

RD10 Drill Size Range 3.70mm - 6.00mm

Product Code: RD10EH2E
4.4mm
  • 3.75mm
  • 3.7mm
  • 3.8mm
  • 3.9mm
  • 4.1mm
  • 4.25mm
  • 4.2mm
  • 4.3mm
  • 4.5mm
  • 4.6mm
  • 4.75mm
  • 4.76mm (3/16)
  • 4.7mm
  • 4.85mm
  • 4.8mm
  • 4.9mm
  • 4mm
  • 5.1mm
  • 5.25mm
  • 5.2mm
  • 5.3mm
  • 5.4mm
  • 5.5mm
  • 5.6mm
  • 5.75mm
  • 5.7mm
  • 5.8mm
  • 5.9mm
  • 5mm
  • 6mm
12mm
  • 20mm
  • 25mm

£6.04 ex VAT

Qty Web Price
1 £6.04
10 £5.74
20 £5.44
50 £5.13
100 £4.71
250 £4.23

Availability: 8 In Stock

RD10 Drill Size Range 3.70mm - 6.00mm

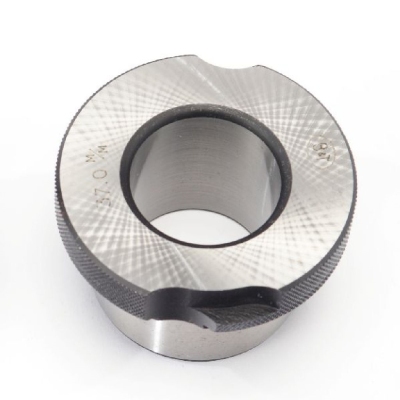

RD10 Renewable Bushes are 10mm outside diameter slip-fixed drill bushes. The 10mm OD is designed to fit a corresponding liner bush for either multi size drilling piloting or reaming operations or high productivity environments where the bush may eventually wear out. Renewable bushes with an OD of 10mm have a standard bore range of 3.7mm to 6mm. Special bore sizes can be manufactured quickly in our UK bush manufacturing facility. Reamer tolerance bushes are suffixed with the letter R in the P/N and also the size description. If you cannot find what you are looking for don’t hesitate to contact the Boneham Technical Team. Renewable bushes can be used directly in fixtures such as the Boneham Handle Bush or "spoon bush as well as egg cup fixtures and other fixture applications.

We will happily quote to customer specification or drawing including the manufacture of aerospace control kits to order. All our renewable drill bushes are etched with the bore size for easy identification and can be customised with tool numbers or other identification requirements.

Key Features

  • RD10 has an 10mm OD
  • Bore sizes from 3.70mm to 6.00mm
  • Through hardened for extra wear resistance
Please select an item below to view/download Download All
  • RD10 has an 10mm OD
  • Bore sizes from 3.70mm to 6.00mm
  • Through hardened for extra wear resistance
  • Hardened from 58 to 62 RC
  • F7 ID drill limits
  • OD ground to suit H6 limits
  • Radius for easy drill entry
  • Lead for easy drill bush location

Technical Information

SKU: RD10EH2E

Bore Size (ID): 4.4mm

Length: 12mm
