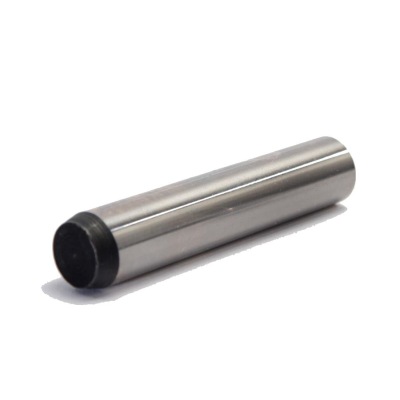

Metric Dowel Pin ISO8734 Type 'B' Mild Steel

Item No. DP34B
Metric BS 8734 / ISO 8734 Type 'B' Hardened Steel. ISO 8734 Metric Dowel Pins are engineers steel dowel pins are precision hardened and ground parallel dowel pins. Manufactured to accurate tolerance limits. For exact locating and alignment in drilled and reamed location holes. The ISO 8734 standard
Read full description
  • Hardened Steel (Except 1mm to 3mm, unhardened)
  • Dowels can be supplied with air release flats
  • Dowel Pins are Primarily used for Location and Alignment Purposes
  • BS7055 | ISO8734 Type B
Description

Metric BS 8734 / ISO 8734 Type 'B' Hardened Steel.

ISO 8734 Metric Dowel Pins are engineers steel dowel pins are precision hardened and ground parallel dowel pins. Manufactured to accurate tolerance limits. For exact locating and alignment in drilled and reamed location holes. The ISO 8734 standard feature a dome end and chamfer end. 1mm to 3mm are unhardened but can be supplied hardened as a special item.

Boneham's Type B dowel pins are case hardened. Dowel pins are supplied from 1mm diameter to 25mm as standard. Other sizes can be manufactured upon request. Lengths are available from 3mm to 120mm. For the full standard size table, please see the data sheet, view the online published catalogue, or request a hard copy from our Technical Sales Team

For large quantities and contract orders of dowel pins, please call our sales desk as discount and inventory solutions can be tailored to requirement.
