Spherical Locator Pin

Key Features

  • Case Hardened
  • Black Oxide Finish
  • Pin Tolerance -0.0005
  • Head Thickness +/- 0.002
  • Imperial (Inch) Sizes
  • Metric and Stainless to Order

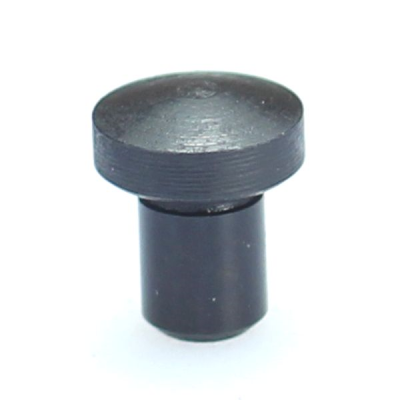

Spherical Locator Pins

Boneham's Spherical Locator Pins, or Buttons, are designed for irregular work surface applications. The spherical radius feature on the head of the pin creates a single point of contact on contoured workpieces. The spherical locator, due to its design, has many other potential uses, such as jig feet and rest pads. The pin element of the button is ground to press fit tolerance

Spherical Locator Pin 5/16" Pin x 3/8" Long
Spherical Locator Pin 5/16" Pin x 3/8" Long
Product Number: SLB3750
List Price: £2.55
Your Price £2.55

Spherical Locator Pin 3/8" Pin x 1/2" Long
Spherical Locator Pin 3/8" Pin x 1/2" Long
Product Number: SLB5000
List Price: £2.85
Your Price £2.85

Spherical Locator Pin 1/2" Pin x 9/16" Long
Spherical Locator Pin 1/2" Pin x 9/16" Long
Product Number: SLB5625
List Price: £3.22
Your Price £3.22

Spherical Locator Pin 1/2" Pin x 5/8" Long
Spherical Locator Pin 1/2" Pin x 5/8" Long
Product Number: SLB6250
List Price: £3.35
Your Price £3.35

Spherical Locator Pin 1/2" Pin x 3/4" Long
Spherical Locator Pin 1/2" Pin x 3/4" Long
Product Number: SLB7500
List Price: £3.90
Your Price £3.90

Spherical Locator Pin 1/2" Pin x 7/8" Long
Spherical Locator Pin 1/2" Pin x 7/8" Long
Product Number: SLB8750
List Price: £3.90
Your Price £3.90
