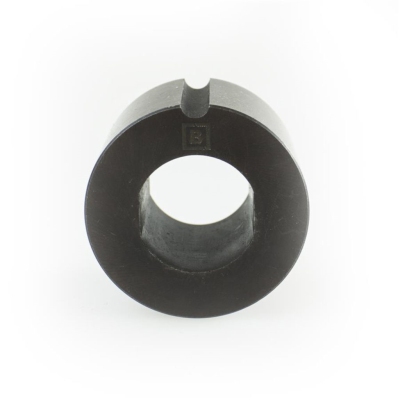

Slotted Locator Bush - Metric

Key Features

  • Inch and Metric Sizes
  • Heat Treated to HRC 58-62
  • Use with Alignment Pins
  • Precision Ground
  • Black Oxide Finish
  • Roll Pin Incuded (5mm)
  • Stainless Manufactured

Metric Press Fit Slotted Locator Bush

Boneham's 'SL Type' Slotted locator bushes are designed for use with BONEHAM's 'L-Pins' or 'T-Pins'. Used as a configuration with a standard Boneham concentric and high tolerance bush. Slotted locator bushes allow for relief in a lateral direction during alignment, whilst maintaining accurate tolerance in the other direction.

When ordering identify the slot width required for your corresponding pin diameter in the table. For installation instructions, please see the catalogue. Roll pin included.

Slotted Bush ID 10.00/10.30mm*13mm x OD 24mm x 9mm Pin 10mm
Slotted Bush ID 10.00/10.30mm*13mm x OD 24mm x 9mm Pin 10mm
Product Number: SLM10
List Price: £31.67
Your Price £31.67

Slotted Bush ID 12.00/12.30mm*15mm x OD 24mm x 14mm Pin 12mm
Slotted Bush ID 12.00/12.30mm*15mm x OD 24mm x 14mm Pin 12mm
Product Number: SLM12
List Price: £37.42
Your Price £37.42

Slotted Bush ID 16.00/16.30mm*18mm x OD 30mm x 12mm Pin 16mm
Slotted Bush ID 16.00/16.30mm*18mm x OD 30mm x 12mm Pin 16mm
Product Number: SLM16
List Price: £37.67
Your Price £37.67

Slotted Bush ID 20.00/20.30mm*22mm x OD 36mm x 19mm Pin 20mm
Slotted Bush ID 20.00/20.30mm*22mm x OD 36mm x 19mm Pin 20mm
Product Number: SLM20
List Price: £60.00
Your Price £60.00

Slotted Bush ID 25.00/25.30mm*27mm x OD 40mm x 19mm Pin 25mm
Slotted Bush ID 25.00/25.30mm*27mm x OD 40mm x 19mm Pin 25mm
Product Number: SLM25
List Price: £60.00
Your Price £60.00

Slotted Bush ID 6.00/6.03mm*9mm x OD 20mm x 9mm Pin 6mm
Slotted Bush ID 6.00/6.03mm*9mm x OD 20mm x 9mm Pin 6mm
Product Number: SLM6
List Price: £20.75
Your Price £20.75

Slotted Bush ID 8.00/8.03mm*11mm x OD 24mm x 9mm Pin 8mm
Slotted Bush ID 8.00/8.03mm*11mm x OD 24mm x 9mm Pin 8mm
Product Number: SLM8
List Price: £20.75
Your Price £20.75
