Slotted Locator Bush - Imperial

Key Features

  • Inch and Metric Sizes
  • Heat Treated to HRC 58-62
  • Use with Alignment Pins
  • Precision Ground
  • Black Oxide Finish
  • Roll Pin Incuded (3/16)
  • Stainless Manufactured

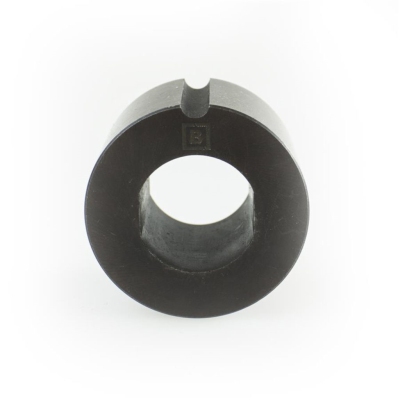

Imperial Press Fit Slotted Locator Bush

Boneham's 'SL Type' Slotted locator bushes are designed for use with BONEHAM's 'L-Pins' or 'T-Pins'. Used as a configuration with a standard Boneham concentric and high tolerance bush. Slotted locator bushes allow for relief in a lateral direction during alignment, whilst maintaining accurate tolerance in the other direction.

When ordering identify the slot width required for your corresponding pin diameter in the table. For installation instructions, please see the catalogue. Roll pin included.

Slotted Bush ID 0.1876"/0.1882"*0.312 X OD 0.7504" X 0.4"
Slotted Bush ID 0.1876"/0.1882"*0.312 X OD 0.7504" X 0.4"
Product Number: SL-488-A
List Price: £20.75
Your Price £20.75

Slotted Bush ID 0.2501"/0.2507"*0.375 X OD 0.7504" X 0.4"
Slotted Bush ID 0.2501"/0.2507"*0.375 X OD 0.7504" X 0.4"
Product Number: SL-488-B
List Price: £20.75
Your Price £20.75

Slotted Bush ID 0.5001"/0.5007"*0.625 X OD 1.0004" X 0.9"
Slotted Bush ID 0.5001"/0.5007"*0.625 X OD 1.0004" X 0.9"
Product Number: SL-6416
List Price: £27.33
Your Price £27.33

Slotted Bush ID 0.2501"/0.2507"*0.375 X OD 1.0004" X 0.4"
Slotted Bush ID 0.2501"/0.2507"*0.375 X OD 1.0004" X 0.4"
Product Number: SL-648-A
List Price: £20.75
Your Price £20.75

Slotted Bush ID 0.3126"/0.3132"*0.437 X OD 1.0004" X 0.4"
Slotted Bush ID 0.3126"/0.3132"*0.437 X OD 1.0004" X 0.4"
Product Number: SL-648-B
List Price: £20.75
Your Price £20.75

Slotted Bush ID 0.3751"/0.3757"*0.500 X OD 1.0004" X 0.4"
Slotted Bush ID 0.3751"/0.3757"*0.500 X OD 1.0004" X 0.4"
Product Number: SL-648-C
List Price: £20.75
Your Price £20.75

Slotted Bush ID 0.5001"/0.5007"*0.625 X OD 1.0004" X 0.4"
Slotted Bush ID 0.5001"/0.5007"*0.625 X OD 1.0004" X 0.4"
Product Number: SL-648-D
List Price: £20.95
Your Price £20.95

Slotted Bush ID 0.6251"/0.6257"*0.750 X OD 1.2504" X 0.9"
Slotted Bush ID 0.6251"/0.6257"*0.750 X OD 1.2504" X 0.9"
Product Number: SL-8016
List Price: £37.33
Your Price £37.33

Slotted Bush ID 0.7501"/0.7510"*0.812 X OD 1.5004" X 1.00"
Slotted Bush ID 0.7501"/0.7510"*0.812 X OD 1.5004" X 1.00"
Product Number: SL-9616-A
List Price: £60.00
Your Price £60.00

Slotted Bush ID 0.8751"/0.8760"*1.00 X OD 1.5004" X 1.00"
Slotted Bush ID 0.8751"/0.8760"*1.00 X OD 1.5004" X 1.00"
Product Number: SL-9616-B
List Price: £60.00
Your Price £60.00

Slotted Bush ID 1.0001"/1.0010"*1.062 X OD 1.5004" X 1.00"
Slotted Bush ID 1.0001"/1.0010"*1.062 X OD 1.5004" X 1.00"
Product Number: SL-9616-C
List Price: £60.00
Your Price £60.00
