Knurled Slotted Locator Bush

Key Features

  • Inch (Imperial Sizes)
  • Heat Treated to HRC 58-62
  • Use with Alignment Pins
  • Knurled Outside Diameter
  • Ground Slot
  • Black Oxide Finish

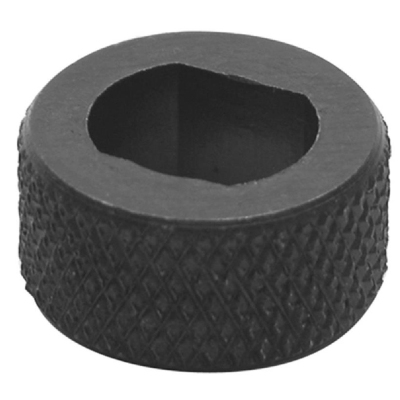

Knurled Slotted Locator Bush

Boneham's 'KSL' Type Knurled Slotted Locator Bushes are designed with a diamond knurled OD for setting or casting into composites or soft materials. Like the 'SL Type' bush, these locator bushes are used with BONEHAM's Alignment Pins. The slotted bush allows for relief in a lateral direction during alignment, whilst maintaining tight tolerances in the other direction. Used with BONEHAM bushes, slotted bushes create a highly accurate locating and alignment system. The Knurled Slotted Locator Bushes diamond knurled OD is designed to work seamlessly with composite materials. BONEHAM’s Serrated GS bushes and Alignment Pins create a highly accurate alignment system for mouldings. When ordering identify the slot width required for your corresponding pin diameter in the table

Knurled Slotted Bush ID 3/16" x 0.312" X 0.565" OD X 0.5"
Knurled Slotted Bush ID 3/16" x 0.312" X 0.565" OD X 0.5"
Product Number: KSL-368
List Price: £13.60
Your Price £13.60

Knurled Slotted Bush ID 1/4" x 0.375" X 0.640" OD X 0.5"
Knurled Slotted Bush ID 1/4" x 0.375" X 0.640" OD X 0.5"
Product Number: KSL-408
List Price: £13.60
Your Price £13.60

Knurled Slotted Bush ID 5/16" x 0.437" X 0.765" OD X 0.5"
Knurled Slotted Bush ID 5/16" x 0.437" X 0.765" OD X 0.5"
Product Number: KSL-488
List Price: £13.60
Your Price £13.60

Knurled Slotted Bush ID 3/8" x 0.500" X 0.890" OD X 0.5"
Knurled Slotted Bush ID 3/8" x 0.500" X 0.890" OD X 0.5"
Product Number: KSL-568
List Price: £15.50
Your Price £15.50

Knurled Slotted Bush ID 1/2" x 0.625" X 1.015" OD X 0.5"
Knurled Slotted Bush ID 1/2" x 0.625" X 1.015" OD X 0.5"
Product Number: KSL-648
List Price: £17.75
Your Price £17.75

Knurled Slotted Bush ID 1/2" x 1.015" X 1.00" OD x 1.00"
Knurled Slotted Bush ID 1/2" x 1.015" X 1.00" OD x 1.00"
Product Number: KSL-9616
List Price: £37.33
Your Price £37.33
