Diamond Bullet Nose Pins Metric

Key Features

  • Precision Ground Location System
  • Diamond (Relieved) Pin
  • Case Hardened
  • Black Oxide Finish
  • Concentric to 0.0005" TIR
  • Metric Sizes

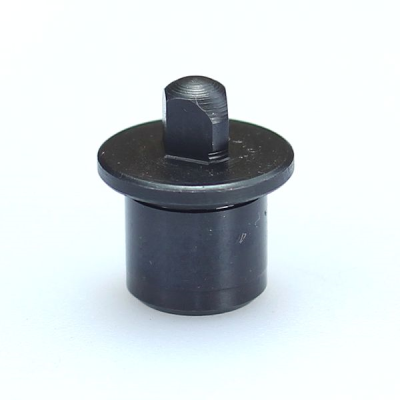

Bullet Nose Pins - Diamond Type in Metric

Diamond Bullet Nose Pins are also known as relieved pins. Bullet nose pins are used with a mating liner bush to create an accurate alignment and locating system. Using diamond locating pins prevents binding of the work pieces. For simple installation, the OD of the pin body and the liner are the same, giving the option of one pass machining of both pates. The pins head and body are concentric to 0.0005 TIR.

Diamond Bullet Nose Pin 6mm Pin
Diamond Bullet Nose Pin 6mm Pin
Product Number: BNDPM600
List Price: £3.34
Your Price £3.34

Diamond Bullet Nose Pin 8mm Pin
Diamond Bullet Nose Pin 8mm Pin
Product Number: BNDPM800
List Price: £4.04
Your Price £4.04

Diamond Bullet Nose Pin 10mm Pin
Diamond Bullet Nose Pin 10mm Pin
Product Number: BNDPM1000
List Price: £9.29
Your Price £9.29

Diamond Bullet Nose Pin 12mm Pin
Diamond Bullet Nose Pin 12mm Pin
Product Number: BNDPM1200
List Price: £9.88
Your Price £9.88
