S Type Imperial Jig Bush BS1098 Pt.1 1967

Key Features

  • B&T Bush codes ranging from SB1 to S12
  • Drill bush, drill diameters from 3/64 to 1+ 3/4
  • Hardened from 58 to 62 RC
  • OD ground to suit H6 limits
  • The UK's largest inventory

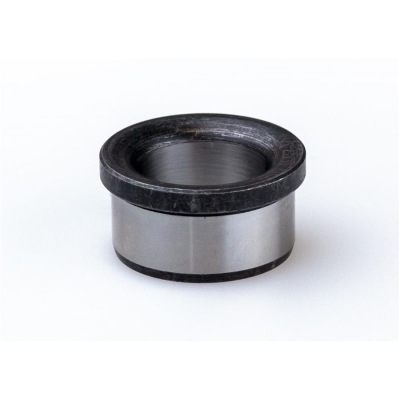

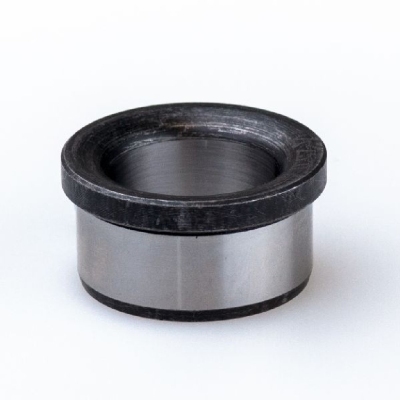

S Type Imperial Jig Bush BS1098 Pt.1 1967

Imperial Headed Drill Bushes or Headed Jig Bushes are dimensionally the same as the imperial plain bushes but feature a head. The head of the drill bush can be counter bored into jig if a flush finish is still required. The benefit of using a headed bush is that they can cope with great axial forces.

Drill bushes can also be used for the accurate alignment of workpieces or composite mouldings.

How to Buy

Please choose the drill size (bore) and length of the drill bush you require, before entering a quantity and clicking 'Add to Cart'.

All drawings for these items are available in our catalogue on the section of the site.

SB1Drill Size Range 0.0469" - 0.0610"
SB1Drill Size Range 0.0469" - 0.0610"
Drill Size
Length

SB1Drill Size Range 0.0625" - 0.0938"
SB1Drill Size Range 0.0625" - 0.0938"
Drill Size
Length

S2 Drill Size Range 0.0945" - 0.1406"
S2 Drill Size Range 0.0945" - 0.1406"
Drill Size
Length

S3 Drill Size Range 0.1417" - 0.1875"
S3 Drill Size Range 0.1417" - 0.1875"
Drill Size
Length

SB4 Drill Size Range 0.1890" - 0.2500"
SB4 Drill Size Range 0.1890" - 0.2500"
Drill Size
Length

S5 Drill Size Range 0.2520" - 0.3125"
S5 Drill Size Range 0.2520" - 0.3125"
Drill Size
Length

S6 Drill Size Range 0.3150" - 0.4062"
S6 Drill Size Range 0.3150" - 0.4062"
Drill Size
Length

S7 Drill Size Range 0.4094" - 0.5000"
S7 Drill Size Range 0.4094" - 0.5000"
Drill Size
Length

S8 Drill Size Range 0.5020" - 0.6250"
S8 Drill Size Range 0.5020" - 0.6250"
Drill Size
Length

S9 Drill Size Range 0.6299" - 0.7500"
S9 Drill Size Range 0.6299" - 0.7500"
Drill Size
Length

SB9 Drill Size Range 0.7579" - 0.8750"
SB9 Drill Size Range 0.7579" - 0.8750"
Drill Size
Length

S10 Drill Size Range 0.8760" - 1.0000"
S10 Drill Size Range 0.8760" - 1.0000"
Drill Size
Length

SB10 Drill Size Range 1.0039" - 1.1875"
SB10 Drill Size Range 1.0039" - 1.1875"
Drill Size
Length

S11 Drill Size Range 1.1909" - 1.3750"
S11 Drill Size Range 1.1909" - 1.3750"
Drill Size
Length

SB11 Drill Size Range 1.3780" - 1.5625"
SB11 Drill Size Range 1.3780" - 1.5625"
Drill Size
Length

S12 Drill Size Range 1.5748" - 1.7500"
S12 Drill Size Range 1.5748" - 1.7500"
Drill Size
Length
