Headed Press Fit Drill Jig Bushes

Headed Press Fit Drill Bushes

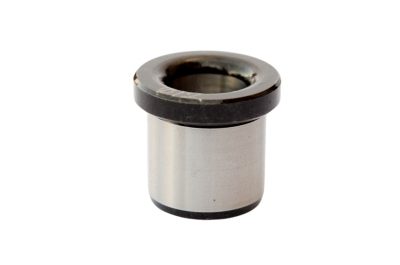

This range of drill / jig bushes is similar to the PP range, but for the head. The headed drill bush type contain a ‘top hat’ or ‘shoulder’ at the top of the bush to allow greater axial force, so not to slip out the plate, and aids where it is desired, to feed down to a dead stop. The head of the bush also allows it to be pressed into the plate easier and can be left either exposed above the plate surface or counterbored to sit flush. These bushes are denominated by the PH reference for metric drill bushes and S for the imperial bush.

How to Buy

Please choose from the following drill bush options and click through to the product page.

Key Features

  • Featured shoulder
  • Imperial and metric
  • DIN 172A
  • ISO 4247
  • BS1098
  • Metric and Imperial
  • Specials manufactured
  • The UK's largest inventory
PH Type Metric Jig Bush BS1098 Pt.2 1977/ISO 4247 /DIN 172A
PH Type Metric Jig Bush BS1098 Pt.2 1977/ISO 4247 /DIN 172A
S Type Imperial Jig Bush BS1098 Pt.1 1967
S Type Imperial Jig Bush BS1098 Pt.1 1967
