Drill Bushes

Drill Bushes and Jig Bushes

Be it a plain jig bush, headed bushes, renewable bushes, liner bushes, location bushes, anchor bushes or serrated bushes. Boneham & Turner have the combination of drill jig bushes to meet your requirement. With the largest stocks of standard drill bushes in the UK. Both metric and imperial sizes are available. Manufactured to BS, ISO, and DIN standards.

Boneham is a UK manufacturer of drill bushes with ISO 9001 certification. Aerospace and automotive bushes are manufactured under our aerospace service program.

Long life nitride drill jig bushes are also available. If your need is for a nonstandard drill bush, the Technical Sales Team will be happy to provide you with price and delivery. Fast turnarounds available on special drill bushes.

Key Features

  • BS 1098 PT.2 1977 / ISO 4247 / DIN 179A
  • BS 1098 PT.2 1977 / ISO 4247 / DIN 172A
  • BS 1098 PT.1 (Imperial) 1967
  • ID's of drill bushes are ground to F7 limits in accordance with ISO
  • All standard stocked items are available on a next day service.

    Drill bushes are highly accurate guides for drills and reamers. Drill bushes work by ensuring the drill enters the workpiece straight and with defined accuracy. Drill bushes also prevent drill wondering, chatter and drill breakage.

    In a classic drill bush setup, a jig is located and locked onto the workpiece to ensure repeatable positioning of the drill bushes and resultant drilled holes. Drill bushes lend themselves to not only drilling applications, but for location, alignment and rollers, due to their accuracy.

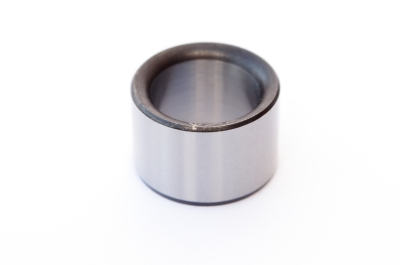

Plain Press Fit Drill Jig Bushes
Plain Press Fit Drill Jig Bushes

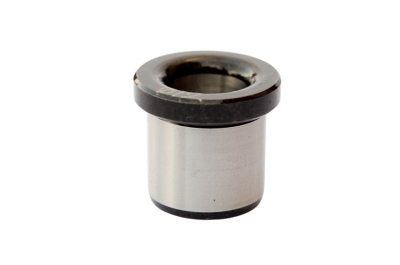

Headed Press Fit Drill Jig Bushes
Headed Press Fit Drill Jig Bushes

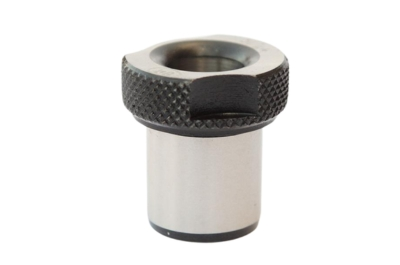

Fixed and Slip Renewable Drill Jig Bushes
Fixed and Slip Renewable Drill Jig Bushes

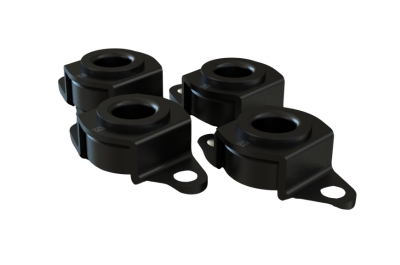

Strapped Anchor Bushes
Strapped Anchor Bushes

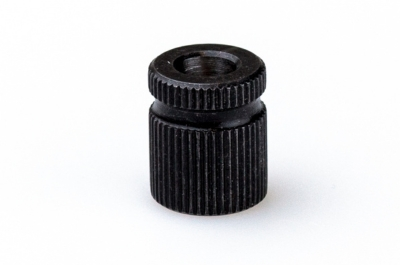

Serrated Jig Bushes
Serrated Jig Bushes
