Tapped Metric Dowel Pins to DIN7979

Key Features

  • Parallel pin with internal thread, hardened to DIN 7979
  • Fully Hardened Steel – Internally Threaded (tapped) with chamfer dome and air release flat
  • The air release flat is used to allow displacement of air preventing damage to the work piece or the ejection of the dowel.
From £0.26 Online

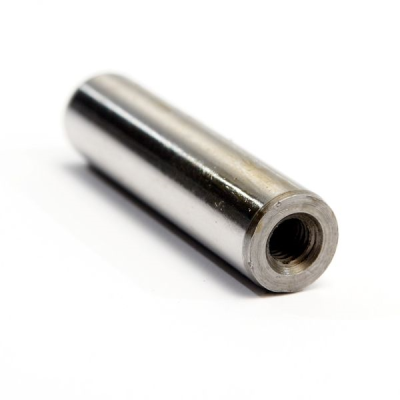

Metric Tapped Dowel Pins to the European DIN 7979

Metric Tapped Dowel Pins to DIN 7979. These Dowel Pins have a tapped extraction hole. DIN 7979 also feature an air release flat for displacement of air when installed into blind holes. DIN 7979 tapped dowels are hardened to 600 - 700 HV1 and ground to m6 limits.

For large quantities (1000 +) and contract orders of dowel pins, please call our sales desk as discount and inventory solutions can be tailored to requirement.

How to Buy

Please choose the diameter and length of the dowel pin you require, before entering a quantity and clicking 'Add to Cart'.

Metric Tapped Dowel Pin to DIN 7979
Metric Tapped Dowel Pin to DIN 7979
