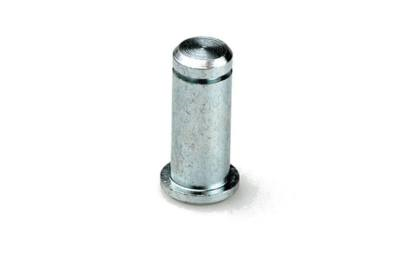

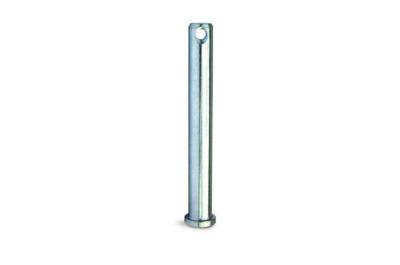

Clevis Pins are a type of fastener that will allow the rotation or swivel of the connected parts about the axis of the pin linkage. A clevis pin, sometimes referred to as a link pin or hinge pin, consists of a head, shank and cross drilled hole. When using a fastening, such as a clevis pin, the hole which is at the opposite end of the pin to the head is inserted through the items to be linked, and then a cotter pin, R clip or similar retaining fastener is inserted through the hole to fix the clevis pin in place.
Like a set screw, a clevis pin is often used to prevent two other pieces from moving relative to each other, A clevis pin is less adjustable, in that it can hold two parts in exactly one relative position (because holes must be drilled in both parts) A clevis pin is also more secure, as it is less apt to work loose due to vibration., this is why clevis pins are often found in agricultural machinery.
Clevis Pins are currently supplied in imperial and metric sizes to ISO 2341B
DIN 1444B, in stainless steel and bright zinc coated steel.
Clevis Pins are available to buy online, or for large enquiries please call our sales desk. We maintain large stocks on a vast variety of clevis pins and always welcome pins to drawing too.
All drawings for these items are available in the Boneham catalogue
- Car Braking Systems

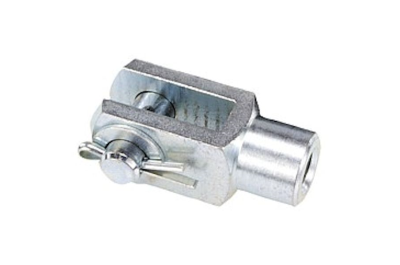

Clevis Pin linkages
Gardening and horticultural Machinery
